LG GERP API

LG GERP API — Developer Handover

Purpose: This document hands over the LG ↔ GERP integration APIs implemented in the lg Frappe app. It explains where code lives, what each function does, request/response formats, Postman collection, error handling, security, test cases, deployment notes and suggestions for future work. This is written for developers who will maintain or extend the integration.

1. Repositories & file locations

App repo (on server): ~/frappe-bench/apps/lg
Primary API file: /home/extension/frappe-bench/apps/lg/lg/api/master_api.py

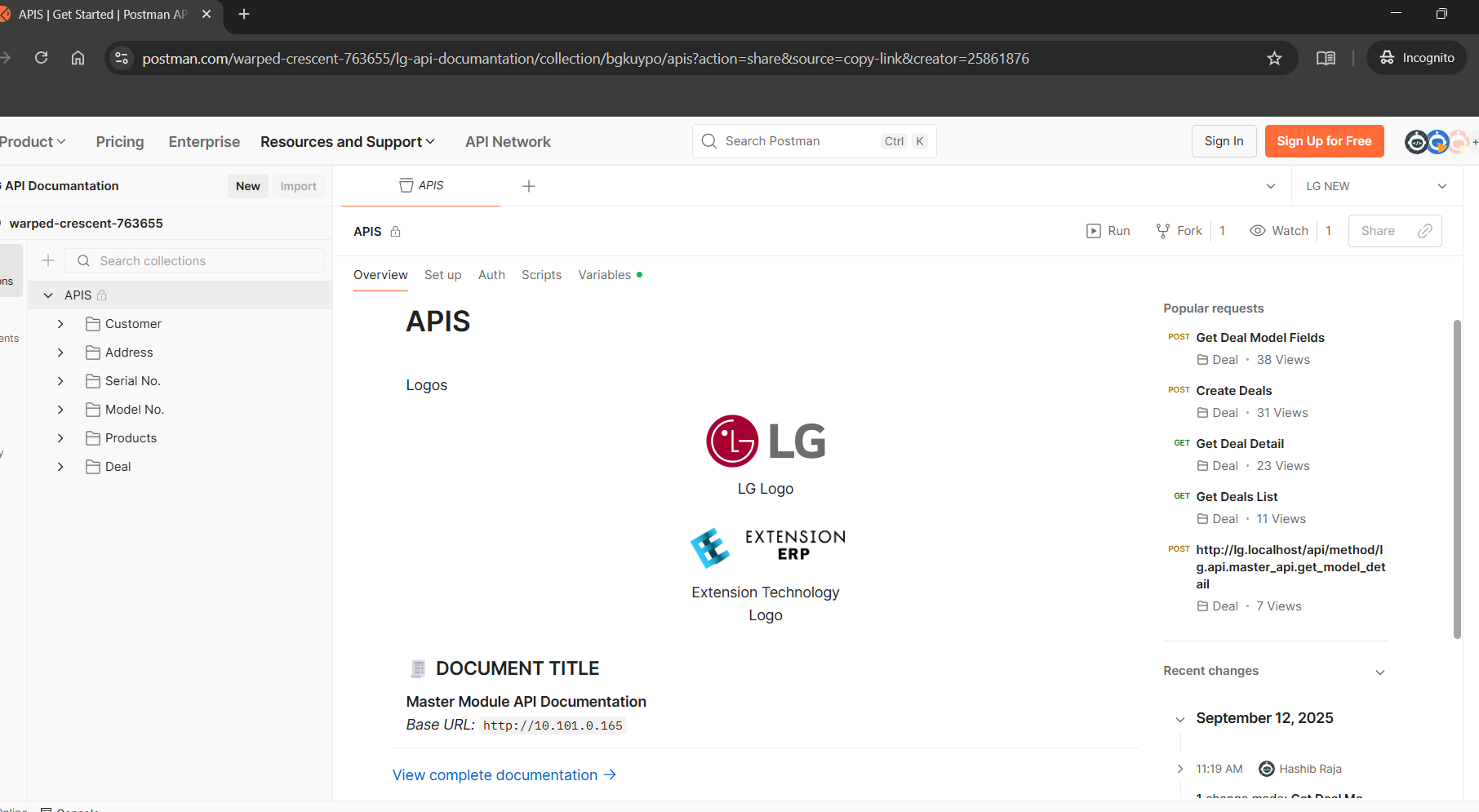

Postman documentation / collection (shared):
- https://www.postman.com/warped-crescent-763655/workspace/lg-api-documantation/collection/25861876-06b50137-4cff-4490-9624-125131d3e7b4?action=share&source=copy-link&creator=25861876

Clone or open the lg app inside a local bench workspace to run tests and inspect commits.

2. Overview — What the API does

The LG API is a fully dynamic integration layer that allows external systems (GERP) to create, update and fetch Frappe doctypes such as Opportunity (CRM Deal), Customer, Address, Product, Model, Serial Number and others. The API intentionally supports generic model based payloads so it can create any doctype with the right input structure. There is special handling for CRM Deal (named CRM Deal in the code) because it has nested/linked data and stricter validations.

Key goals implemented:

Dynamic metadata-driven mapping — endpoint can return a model schema (via get_model_detail) so external systems know required fields and child-table structures.
Create-or-update flows based on an ID field (the API checks for existence and updates instead of duplicating records).
Recursive handling of nested foreign-key objects and table child rows.
Multi-level validation for mandatory fields and data formats.
A Postman collection documents all endpoints and example payloads for consumers.

3. API endpoints (functions exported)

All endpoints expect POST requests (JSON body) and are exposed via Frappe's whitelist routes.

create_record()
- Path: depends on your site routes (e.g. /api/method/lg.api.master_api.create_record).
- Purpose: Generic record create/update endpoint for any doctype.
- Input JSON (minimum):
```
{
  "model": "Customer",
  "data": { /* doctype fields */ }
}
```
- Special-case: CRM Deal flows use handle_crm_deal for rigorous validation and nested handling.
- Response: { status: 'success', data: { model, data, doc } } or error object with HTTP 400.
get_model_detail()
- Purpose: Returns a metadata object that describes a doctype's fields (filtered & transformed for API use).
- Input JSON: { "model": "Customer" }.
- Response: A list of field descriptors (field api_key, label, fieldtype, options, mandatory flag, and nested fields for child tables).
Utility functions (internal, non-whitelisted):
- get_doc_and_return_detail_fields(doctype) — orchestrates building of the metadata for a model.
- get_fields_by_doctype(doctype, ...) — reads frappe meta and maps fields into the API-friendly shape.
- check_table_or_return_same_fields(field, ...) — handles child-table recursion.
- create_mapped_fields(fields, field_name) — filters and maps meta fields into the api view.
- transform_key / transform_value / check_availble_field / check_not_availble_field — helper transformers & filters used while shaping the schema.

4. How the dynamic create flow works (detailed)

create_record() validates it's a POST and JSON body exists.
It extracts model and data from the request body.
If the model is CRM Deal, it calls get_doc_and_return_detail_fields to fetch the expected fields and then handle_crm_deal(document_data, schema, doctype) to perform:
- Mandatory fields verification.
- Per-field validation depending on fieldtype (primitive, foreign key, table).
- For Foreign Key fields: expects a nested dictionary describing the linked doctype. It will recursively call handle_crm_deal for that linked doctype and return the saved document identifier (so the top-level document can reference it). The code attempts to find an id_field in the linked doctype for existence check.
- For Table fields (child tables): expects a list of row objects (dictionaries). Each row is validated and nested foreign-key processing is applied if a child field has Foreign Key type.
- After validation and recursive saving/updates, the function tries to find an id_field for the current doctype to decide whether to update or insert:
  - If the record exists (via frappe.db.exists(doctype, id_value)), it updates (get_doc(...).update(...).save()).
  - Otherwise it creates a new doc (frappe.new_doc(...).update(...).insert()).
For all other doctypes (non-CRM Deal), create_record() simply sets document_data['doctype'] = doctype, creates a doc via frappe.get_doc(document_data) and calls insert().

5. Example payloads

Generic doctype creation (simple)

POST /api/method/lg.api.master_api.create_record
{ "model": "Customer",
  "data": {"customer_name": "LG Store Pune", "customer_group": "Commercial"}
}

CRM Deal (complex with nested foreign key and table)

POST /api/method/lg.api.master_api.create_record
{
  "model": "CRM Deal",
  "data": {
    "deal_id": "LG-DEAL-123",            // if id_field is configured this is used to update
    "customer": {                          // foreign key — object with its own id_field
       "customer_name": "LG Dealer X",
       "email_id": "dealerx@example.com"
    },
    "items": [                            // table — list of rows
      {"item_code": "MODEL-001", "qty": 10},
      {"item_code": "MODEL-002", "qty": 5}
    ]
  }
}

Use get_model_detail to fetch the correct api_key names and which child fields are mandatory for the CRM Deal model before calling create_record.

6. get_model_detail — metadata format

get_model_detail() returns a list of field descriptors. Example shape (simplified):

[
  {"api_key": "customer", "label_name": "Customer", "fieldtype": "Foreign Key", "options": "Customer", "mandatory": "Yes", "fields": [ /* nested fields if FK or child table */ ]},
  {"api_key": "items", "label_name": "Items", "fieldtype": "Table", "options": "Sales Invoice Item", "mandatory": "No", "fields": [ /* child fields */ ]},
  {"api_key": "deal_value", "label_name": "Deal Value", "fieldtype": "Number", "mandatory": "No"}
]

The doc meta is transformed: ERPNext Data/Link/Select/Int/Check types are mapped to String/Foreign Key/Dropdown/Number/Boolean for clarity.

7. Error handling & logging

The code wraps endpoints in try/except and on exception:
- Calls frappe.log_error(frappe.get_traceback(), "Test API Error") to push the error to the Frappe desk error log.
- Sets frappe.response.http_status_code = 400 and returns {"status": "error", "message": str(e)}.

Notes:

Error messages are thrown with frappe.throw() for validation failures; these bubble up to the except block and are logged.
For production safety, consider returning standardized error codes and messages rather than raw exception strings.

8. Security considerations

Authentication: Ensure Frappe authentication is required for these endpoints. If used by external GERP system, create an API key user for GERP and document the API key/secret usage. Example approaches:
- Use Frappe token-based auth (API key & secret on the user record).
- OR use an IP-restricted service user + API key.
Validation & Whitelisting: The create_record endpoint is powerful. Limit which doctypes can be created/updated by checking model against a server-side allowlist (e.g., ALLOWED_MODELS = ['Customer', 'Address', 'CRM Deal', 'Item', 'Serial No']). Right now the code is fully dynamic — that increases risk.
Rate limiting & abuse: Add simple rate limiting for external IPs or an API gateway to protect from accidental floods.
Input sanitization: The code already validates structure, but ensure no risky fields (like system fields owner, role, etc.) are writable by external client. Fields to hide are already listed in hide_fields; ensure document_data cannot override those.
Audit & logging: Maintain request logs (request payload + user IP + API user) for traceability. The existing frappe.log_error is for exceptions — add frappe.logger().info() calls for successful actions if needed.

9. Postman collection

The provided Postman collection URL describes all API endpoints and payload examples. Keep it in sync with code changes.
Suggested: export the collection as JSON and add it to the repo under /docs/postman/lg-api-collection.json so it is versioned.

10. Tests & QA

Recommended test cases:

Create simple Customer record → validate inserted fields and name computed.
Create Customer with same unique id twice → should update instead of inserting duplicate (if id_field config exists).
CRM Deal with nested customer FK and items table — confirm both child rows and linked customer exist after call.
Attempt to create a record with missing mandatory field → expect HTTP 400 with descriptive message.
Test get_model_detail for CRM Deal and a child table doctype — compare returned schema with Frappe meta.
Security tests: call endpoints unauthenticated and ensure access denied.

Automated test suggestion:

Create pytest / frappe testcases that call the methods with frappe.test_request() or use frappe.client.post inside a test site.

11. Deployment & runtime notes

The code is located in the app folder, so deploy the lg app via bench update, or bench restart after changes.
If you modify whitelisted functions, clear Frappe caches and reload hooks: bench --site <site> clear-cache & bench restart.
If adding new doctypes or fields, run bench --site <site> migrate.
If the GERP system expects specific URLs, confirm the site domain and NGINX proxy rules map correctly to /api/method/... endpoints.

12. Suggested improvements (short term & long term)

Short term

Add an ALLOWED_MODELS whitelist to restrict dynamic model inputs.
Improve error responses to return code + message + details instead of raw exceptions.
Add logging of successful operations (user, ip, model, id) to a central log file.
Version the Postman collection inside the repo.

Long term

Implement idempotency keys for create_record to safely retry requests from GERP.
Add a schema registry endpoint with explicit sample payloads & examples for each model.
Replace direct recursion with a transaction-style save (so partial saves can be rolled back on failure) — use frappe.db.begin() / frappe.db.rollback() where appropriate.
Add RBAC checks to ensure the API user can only create or update records within permitted domains (e.g., only customers in their region).

13. Quick troubleshooting checklist

400 errors on POST: Inspect frappe.error_log for tracebacks. Use frappe.get_traceback() output saved there.
Missing nested objects after call: Ensure id_field exists in linked doctype meta or naming rule is compatible with the code's expectations.
Permission denied: Confirm API user has System Manager privileges for testing or restricted permissions required for production.
Unexpected duplicates: Confirm the id_field is set correctly in the doctype meta (the code relies on an id_field to detect existing records).

14. Contacts & ownership

Current code owners / contributors: check Git commit history in the lg app — primary authors are the team members who committed recent changes. On the server the file path indicates who touched it.
GERP integration contact: Add your internal contact and the GERP technical contact info here (not included in this doc).

15. Appendix — Useful snippets

cURL sample (generic):

curl -X POST \
  https://<your-site>/api/method/lg.api.master_api.create_record \
  -H 'Content-Type: application/json' \
  -H 'Authorization: token <api_key>:<api_secret>' \
  -d '{"model":"Customer","data":{"customer_name":"Demo"}}'

cURL sample (CRM Deal):

curl -X POST https://<site>/api/method/lg.api.master_api.create_record \
  -H 'Authorization: token <api_key>:<api_secret>' \
  -H 'Content-Type: application/json' \
  -d '{"model":"CRM Deal","data":{"deal_id":"LG-001","customer":{"customer_name":"LG Dealer X"}}}'
