Convertech EPL Tally Connector — Developer Handover

Project Overview

This project is developed for Convertech to integrate their CRM process with Tally ERP. The connector bridges CRM, Factory Tally, and Main Office Tally, ensuring seamless synchronization of accounts, sales orders, invoices, products, and receipts.

It is built on React + Tauri, with a modular architecture that supports clean data flow, easy error tracing, and extendability for future modules.

CRM Process (Business Flow)

The CRM side drives the entire flow of account, order, and product creation. Below is the step-wise process:

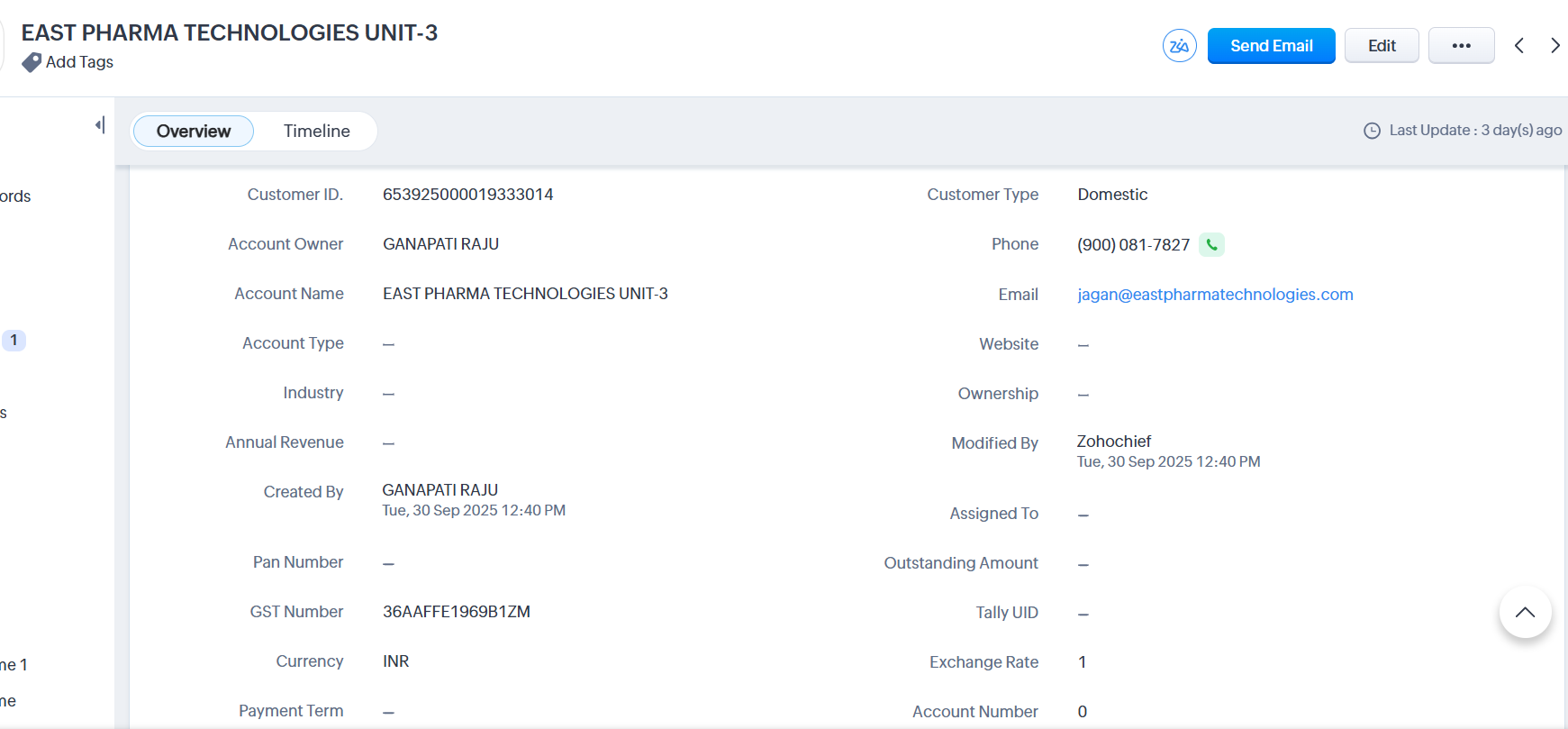

Account Creation
- When a new account is created in CRM, a notification is triggered to the factory team.
- The factory team creates a Sundry Debtor in Tally (Factory instance).
- By default, Tally auto-syncs this debtor into the Main Office Tally company.

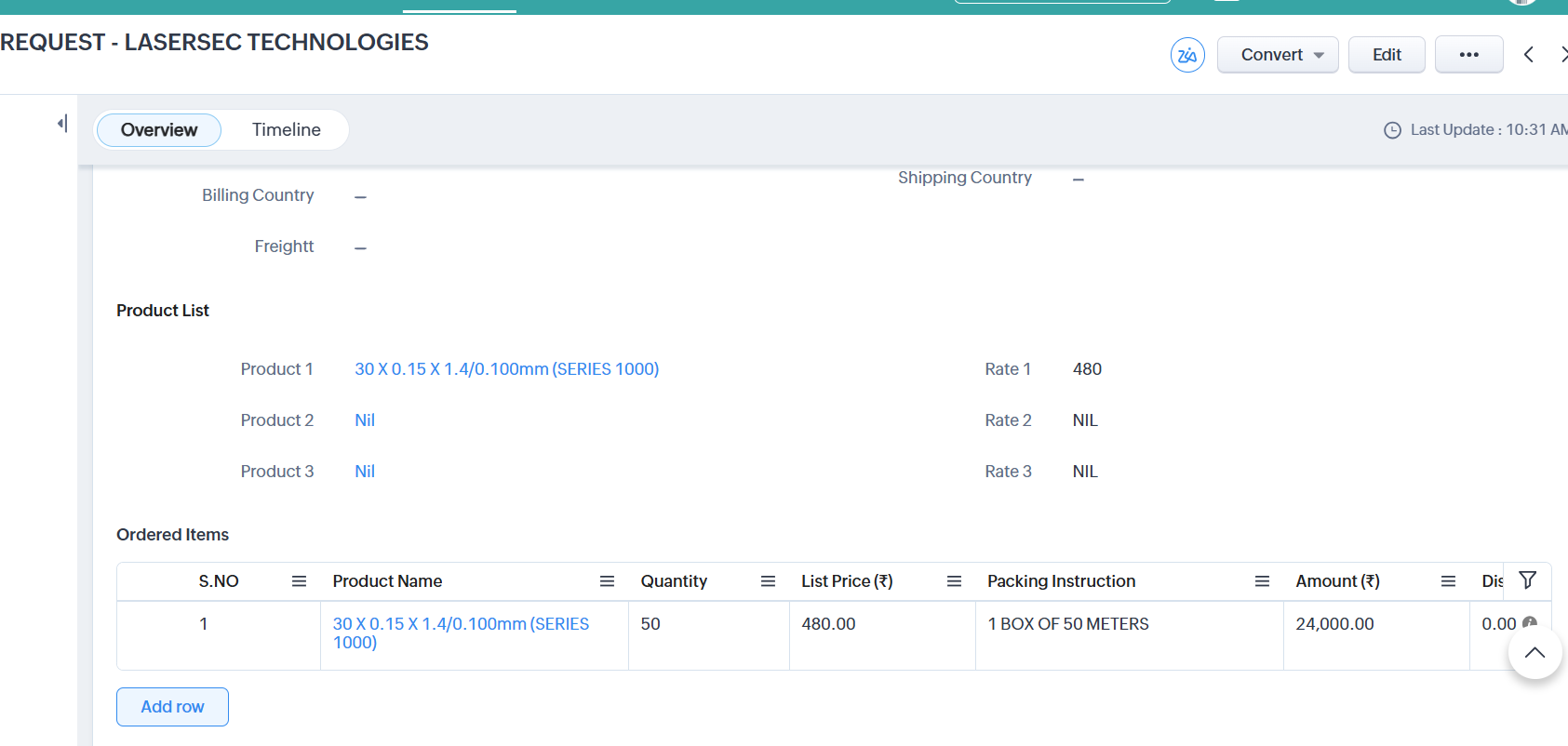

Sales Order
- Sales order is created against the CRM account.
- Once approved, a notification is sent to the factory team.
- The factory creates an invoice in Tally.
- This invoice auto-syncs into the Main Office Tally.

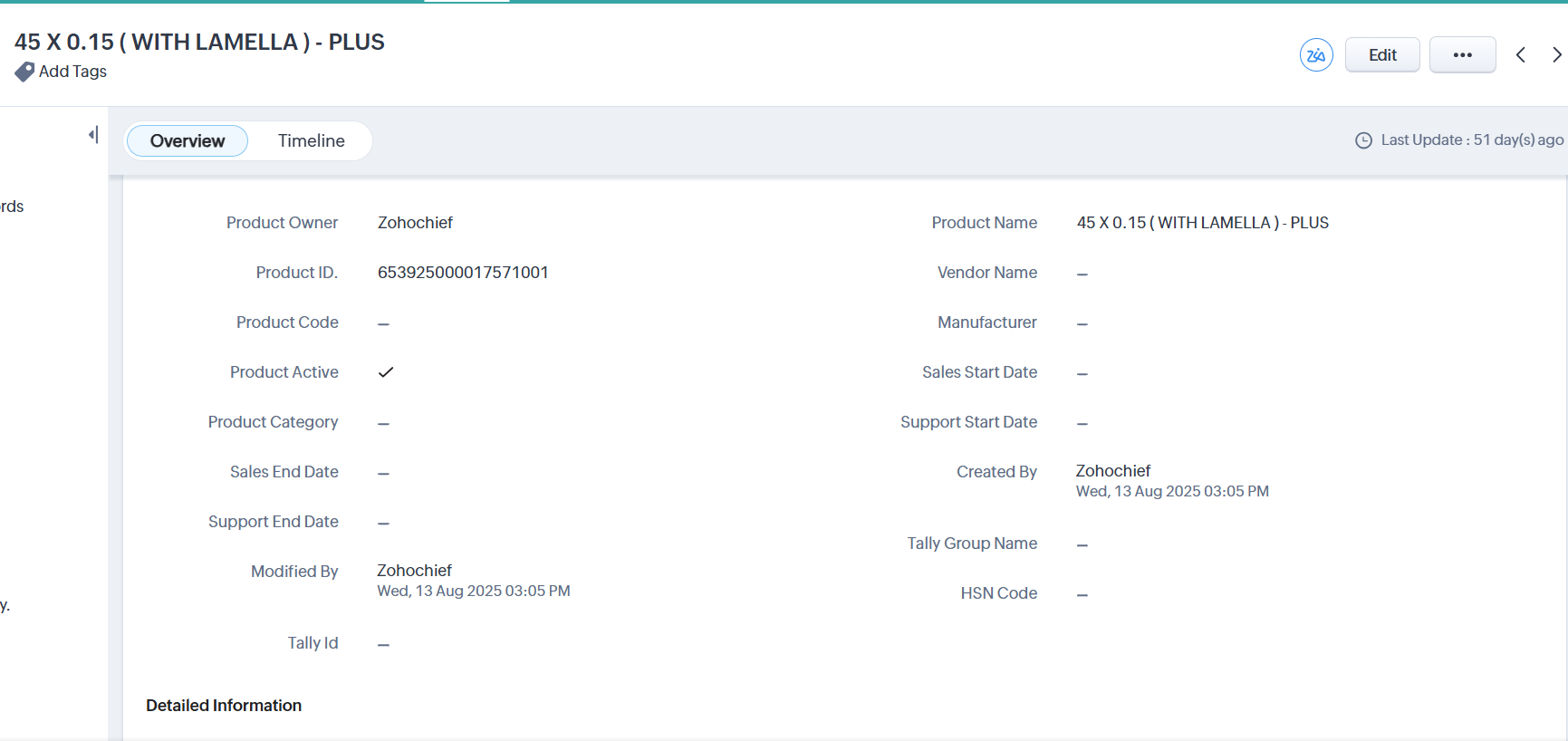

Product Creation
- When a new product is added in CRM, a notification is sent to the factory.
- The factory team creates the Stock Item in Tally (Factory).
- The stock item is then auto-synced with the Main Office Tally.

This ensures data consistency across CRM → Factory Tally → Main Office Tally.

Project Structure

Frontend (React + Tauri)

/src → Main application folder
- /components → React components
  - /global → Shared components (tables, layouts)
  - /screens → Application modules
    - /app/Authentication → Login & authentication screens
    - /app/crm → CRM settings screens
    - /app/tally → Tally integration screens
    - /app/Dashboard → Dashboard & system settings
  - /ui → Reusable UI widgets (buttons, dialogs, forms, modals)
- /utils → Hooks, contexts, and utilities
- /lib → Helper libraries

Tech Stack

Frontend: React + React Router + TailwindCSS + RadixUI
Backend (connector side): Tauri (Rust bridge)
Integration: CRM REST APIs, Tally XML-based APIs
State Management: React Context

{
  "name": "convertech_tally_connector_app",
  "private": true,
  "version": "1.1.6",
  "type": "module",
  "scripts": {
    "dev": "vite",
    "build": "vite build",
    "preview": "vite preview",
    "tauri": "tauri"
  },
  "dependencies": {
    "@hookform/resolvers": "^3.3.1",
    "@radix-ui/react-dialog": "^1.0.5",
    "@radix-ui/react-dropdown-menu": "^2.0.6",
    "@radix-ui/react-label": "^2.0.2",
    "@radix-ui/react-progress": "^1.0.3",
    "@radix-ui/react-scroll-area": "^1.0.5",
    "@radix-ui/react-slot": "^1.0.2",
    "@radix-ui/react-toast": "^1.1.5",
    "@radix-ui/react-toggle": "^1.0.3",
    "@reduxjs/toolkit": "^1.9.6",
    "@tanstack/react-table": "^8.10.4",
    "@tauri-apps/api": "^1.5.3",
    "axios-tauri-api-adapter": "^0.2.0",
    "class-variance-authority": "^0.7.0",
    "clsx": "^2.0.0",
    "frappe-js-sdk": "^1.3.7",
    "localforage": "^1.10.0",
    "lucide-react": "^0.279.0",
    "match-sorter": "^6.3.1",
    "moment": "^2.29.4",
    "react": "^18.2.0",
    "react-code-blocks": "^0.1.4",
    "react-dom": "^18.2.0",
    "react-hook-form": "^7.46.2",
    "react-icons": "^4.11.0",
    "react-json-formatter": "^0.4.0",
    "react-router-dom": "^6.16.0",
    "sort-by": "^1.2.0",
    "swr": "^2.2.4",
    "tailwind-merge": "^1.14.0",
    "tailwindcss-animate": "^1.0.7",
    "tauri-plugin-log-api": "https://github.com/tauri-apps/tauri-plugin-log#v1",
    "tauri-plugin-sql-api": "https://github.com/tauri-apps/tauri-plugin-sql#v1",
    "tauri-plugin-store-api": "https://github.com/tauri-apps/tauri-plugin-store#v1",
    "x2js": "^3.4.4",
    "zod": "^3.22.2"
  },
  "devDependencies": {
    "@tauri-apps/cli": "^1.5.10",
    "@types/node": "^20.7.1",
    "@vitejs/plugin-react": "^4.0.3",
    "autoprefixer": "^10.4.16",
    "postcss": "^8.4.31",
    "tailwindcss": "^3.3.3",
    "vite": "^4.4.4"
  }
}

Key Features

Authentication

Implemented in Login.jsx
State managed by useLogin.js (React context)

import useSWR from "swr";
import { getStoreSettings, saveStoreSettings } from "../services/settings";
import moment from "moment";

const fetcher = async () => {
  const userData = await getStoreSettings("userDetails");
  let isAccessible = false;

  if (userData) {
    const trialTime = userData.day_of_access ?? 1;
    const creationTime = new Date(moment(userData.creation).format("yyyy-MM-DD")).getTime();
    const trialPeriodInTime = 24 * 60 * 60 * 1000 * trialTime;
    const creationWithTrialTime = creationTime + trialPeriodInTime;

    const currentTime = new Date(moment(Date.now()).format("yyyy-MM-DD")).getTime();
    isAccessible = !(currentTime >= creationWithTrialTime);
    if (!isAccessible) {
      await saveStoreSettings("userDetails", null);
    }
  }

  return isAccessible;
};

export const useLogin = () => {
  return useSWR("/userData", fetcher);
};

Data Synchronization (CRM ↔ Tally)

Accounts / Debtors
- CRM triggers notification → Factory creates in Tally → Sync to Main Office Tally
Sales Orders / Invoices
- CRM order → Factory invoice → Auto-sync to Main Office
Products / Stock Items
- CRM product → Factory stock item → Sync to Main Office
Receipts
- Payment handling with synchronization to Tally
System Logs
- Detailed sync logs available for debugging & audit

Settings Management

CRM Settings → CrmSettings.jsx
Tally Settings → TallySettings.jsx
System Settings → SystemSetting.jsx

Services

Located in /utils/services/:

crm.service.js → Handles CRM API calls
tally.service.js → Manages Tally XML posting & responses
tallyXML.js → Central XML templates for vouchers, stock, accounts

Routing

Main routes defined in main.jsx:

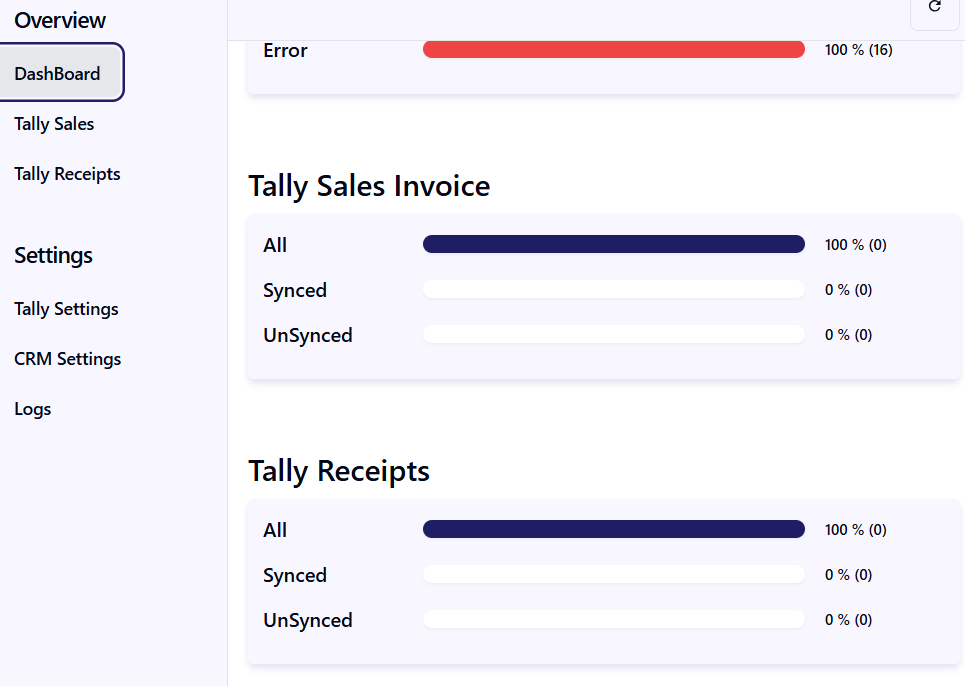

/ → Dashboard

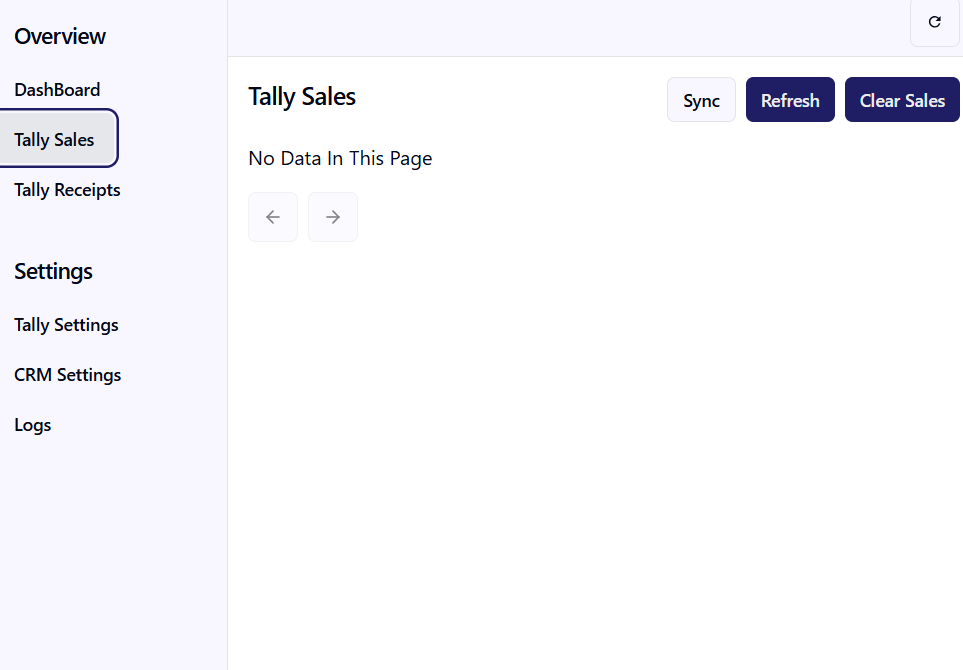

/tally-sales → Manage Sales Orders & Invoices

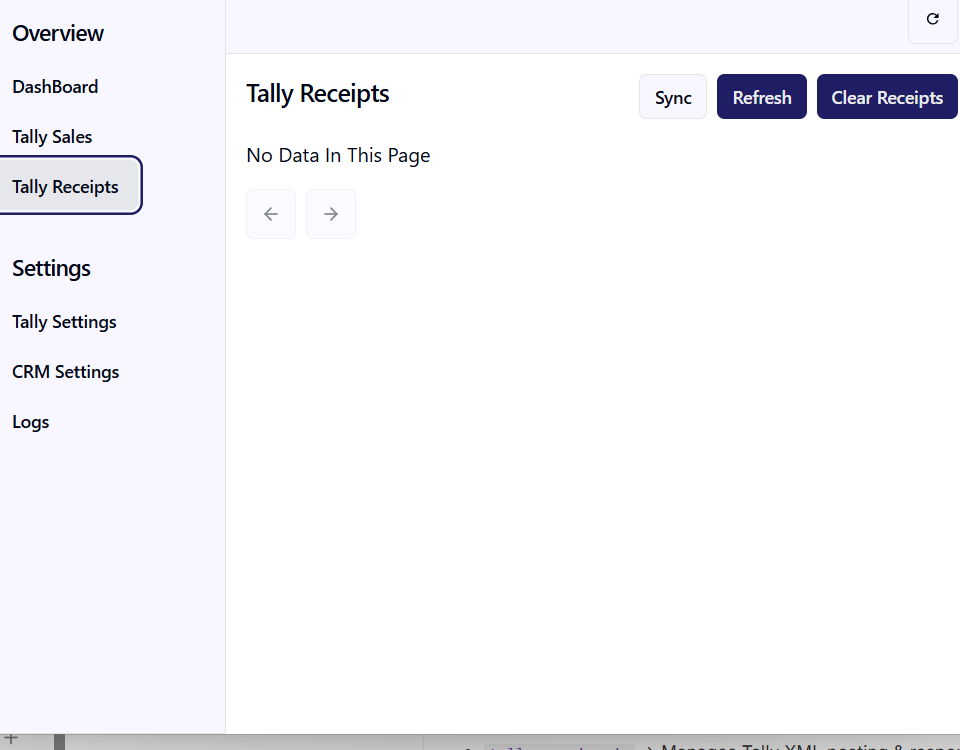

/tally-receipts → Receipt management
/crm-settings → CRM configuration
/tally-settings → Tally connection setup

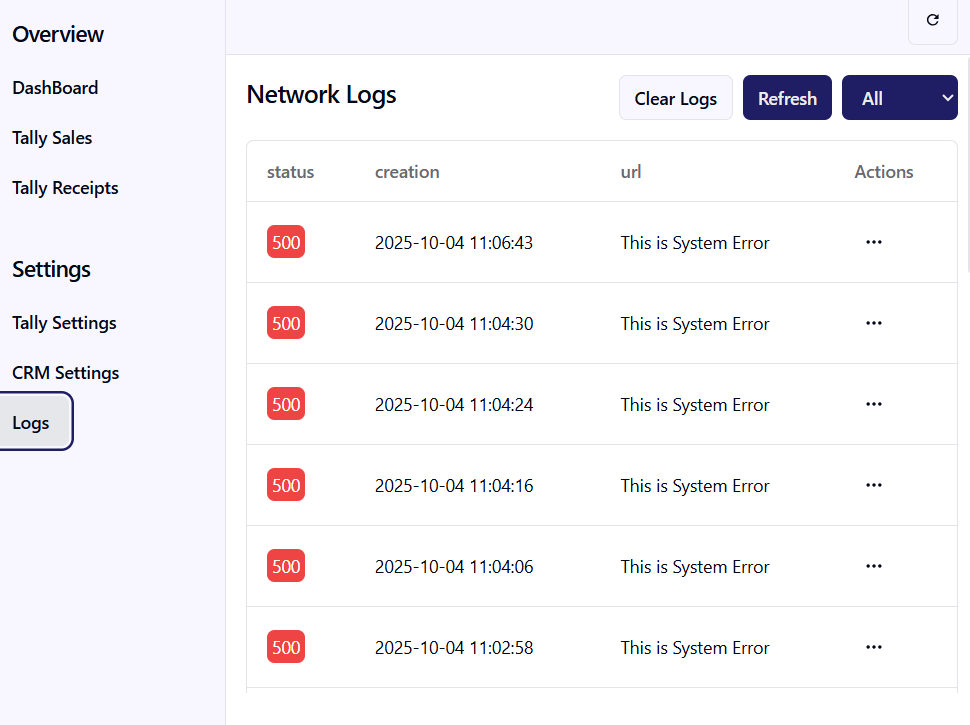

/logs → Logs & error reports

Development Guidelines

State Management

Global state via React Context
ServiceContext.jsx → Provides API/service integration context
ToastContext.jsx → Notification system

Styling

TailwindCSS for layout & theming
Custom UI components in /components/ui/
Config in tailwind.config.js

Error Handling

User-facing errors → Toast notifications
Technical errors → Logged in /logs

Reusable Data Tables

TableUi.jsx for all grid-based data
Supports pagination, filtering, and inline actions

Setup & Deployment

Development Setup

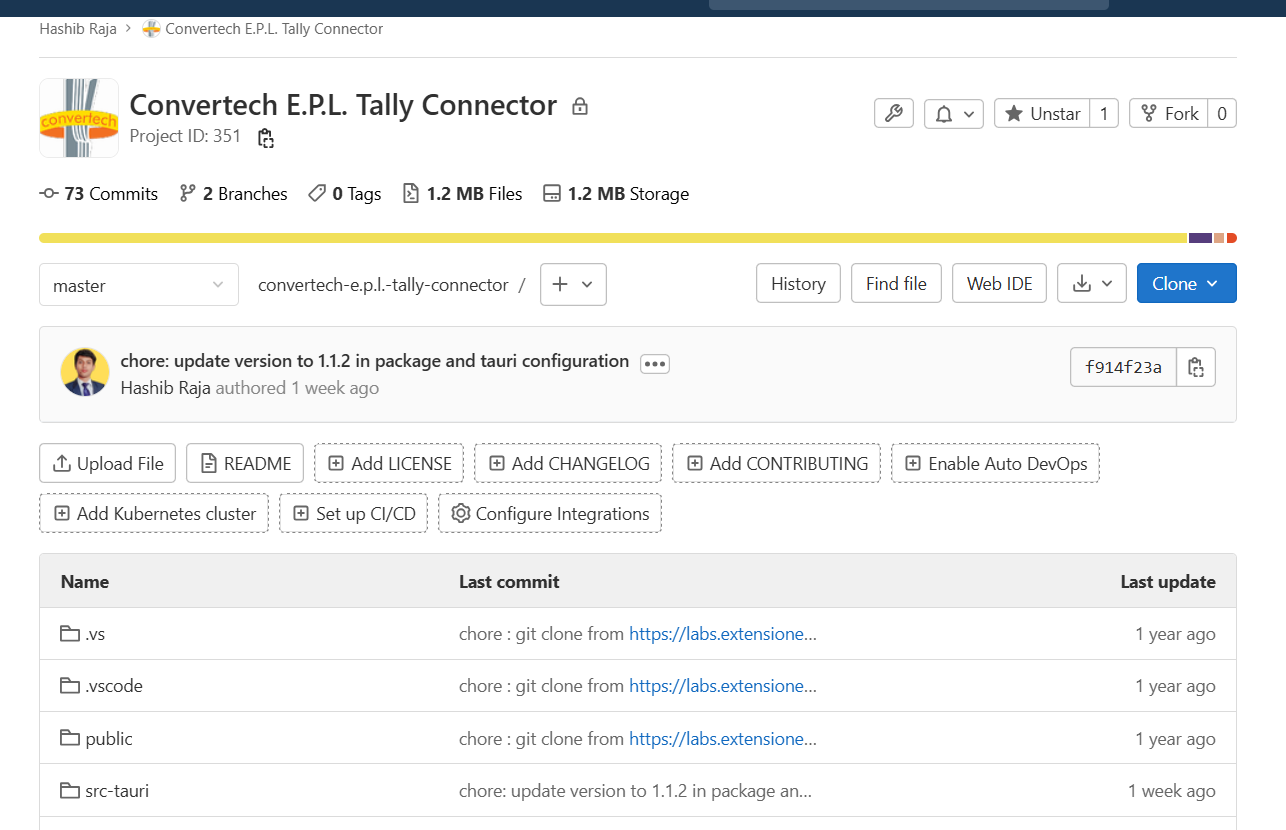

Clone the repo

git clone https://labs.extensionerp.com/hashib/convertech-e.p.l.-tally-connector.git
cd convertech-tally-connector

Install dependencies
```
yarn

```
Build Tauri app (desktop binary)
```
yarn run tauri build
```

Deployment

The app builds into a desktop executable via Tauri.
Deploy to main office desktops where Tally is installed.
Ensure Tally Gateway Server is running and accessible.
