XA Group – Tally Connector Handover Documentation

Project Overview

The XA Group Tally Connector is a React + Tauri based desktop application that integrates Zoho CRM, ERP, and Tally to enable automated synchronization of critical business data such as:

• Dealers (Sundry Debtors)

•


• Invoices

•


• Advance Receipts & Adjustments

•


• Credit Notes

•


• TDS Entries

•


• Stock Items / Products

•

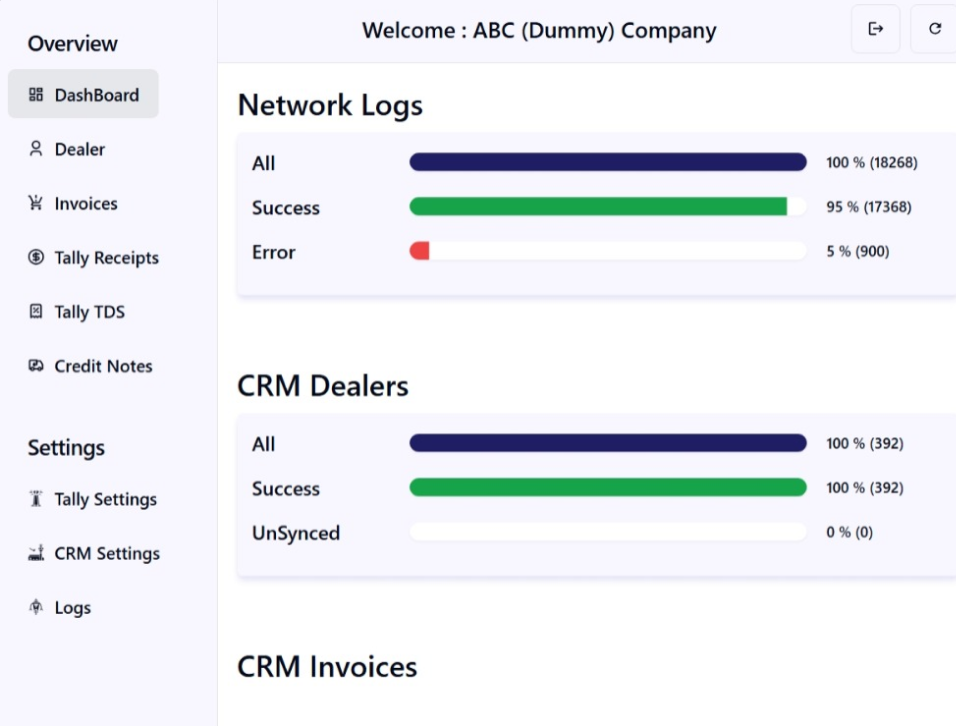

The system reduces manual work, keeps financial data consistent across CRM and Tally, and provides a central dashboard for monitoring sync status, logs, and system health.

Tech Stack

• Frontend Framework: React (Vite)

• Desktop Framework: Tauri

• Styling: TailwindCSS + RadixUI

• State Management: React Context API

• Data Fetching: SWR

• Backend Communication: CRM & ERP APIs + Tally XML

• Build Target: Windows Executable (via Tauri bundling)

Project Structure

/src
 ├── /components
 │    ├── /screens
 │    │    ├── /app
 │    │    │    ├── Dashboard.jsx
 │    │    │    ├── CrmSettings.jsx
 │    │    │    ├── TallySettings.jsx
 │    │    │    ├── SystemSetting.jsx
 │    │    │    ├── Logs.jsx
 │    │    │    └── ErrorPage.jsx
 │    ├── /ui        # Buttons, Tables, Forms, Modals
 │    └── /global    # Shared components (TableUI, Toasts)
 ├── /utils
 │    ├── /services
 │    │    ├── crm.service.js
 │    │    ├── tally.service.js
 │    │    ├── erp.service.js
 │    │    └── tallyXML.js
 │    └── /contexts
 │         ├── ServiceContext.jsx
 │         ├── ToastContext.jsx

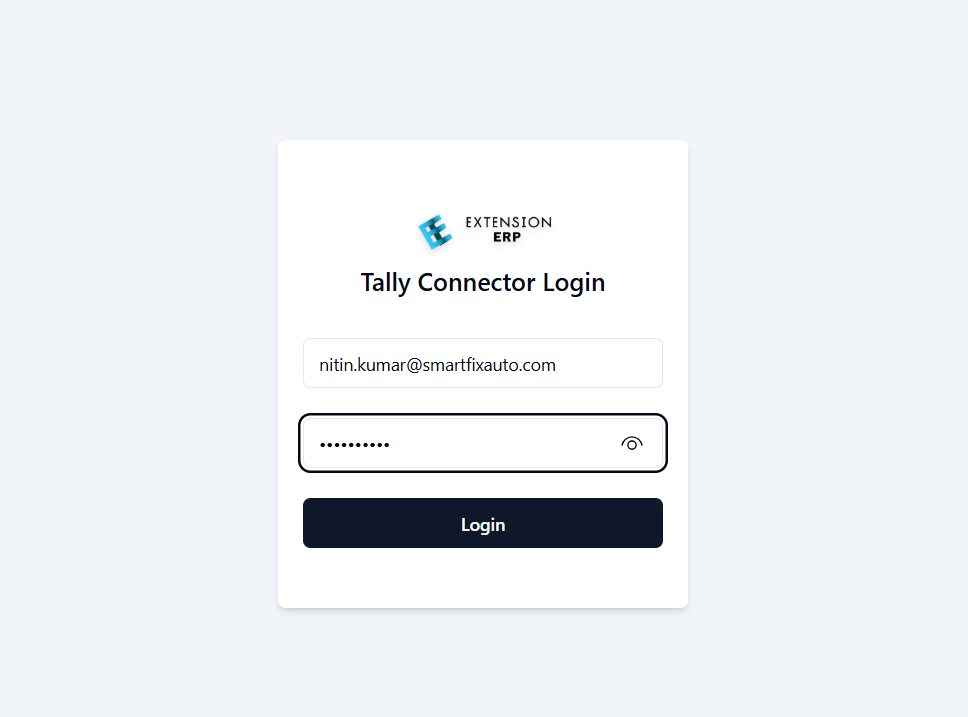

 │         └── useLogin.js
 ├── main.jsx
 └── tailwind.config.js

Core Business Workflows

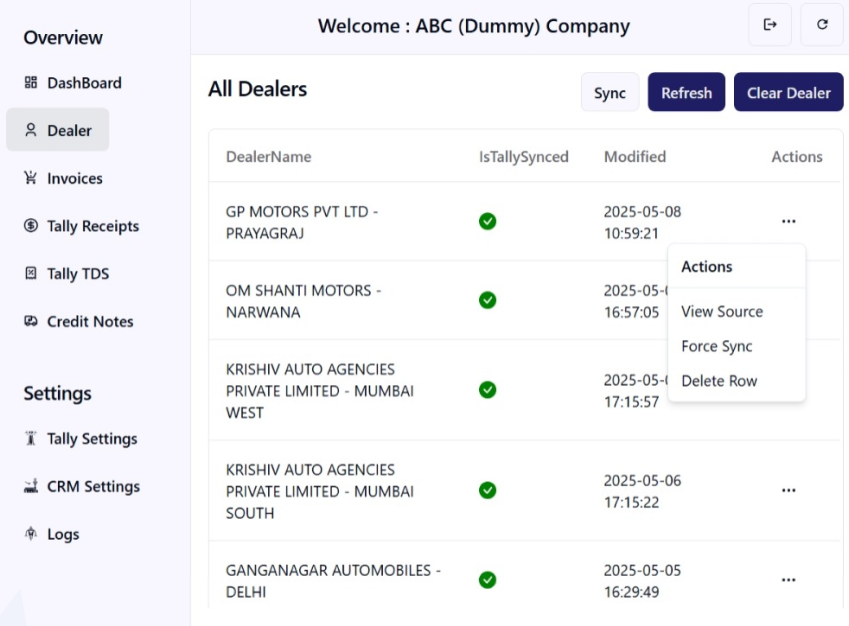

1. Dealer Creation & Sync

• CRM Side: Dealer is created in Zoho CRM Dealer Module.

• Connector Flow:

  • crm.service.js → pushes dealer data to Tally.

  • tally.service.js → creates Ledger under Sundry Debtors in Tally.

  • Status (isTallySynced, lastModified) updated in CRM.

• Business Rule: GST number auto-populates POS & State Code.

• Validation: Dealer’s unique zcrm_id prevents duplicate sync.

• Outcome: Ledger created in Tally and available under Chart of Accounts → Ledgers.

2. Estimate Summary Automation

• Uploaded Excel → Zoho WorkDrive → Auto Sync to CRM Estimate Summary Module (via scheduler at 3 PM UAE / 4:30 PM IST).

• If rows contain errors → system emails error report.

• CRM connector verifies sub-dealer code for matching records.

• Code Reference:

  • crm.service.js → syncEstimates()

  • erp.service.js → validateEstimateData()

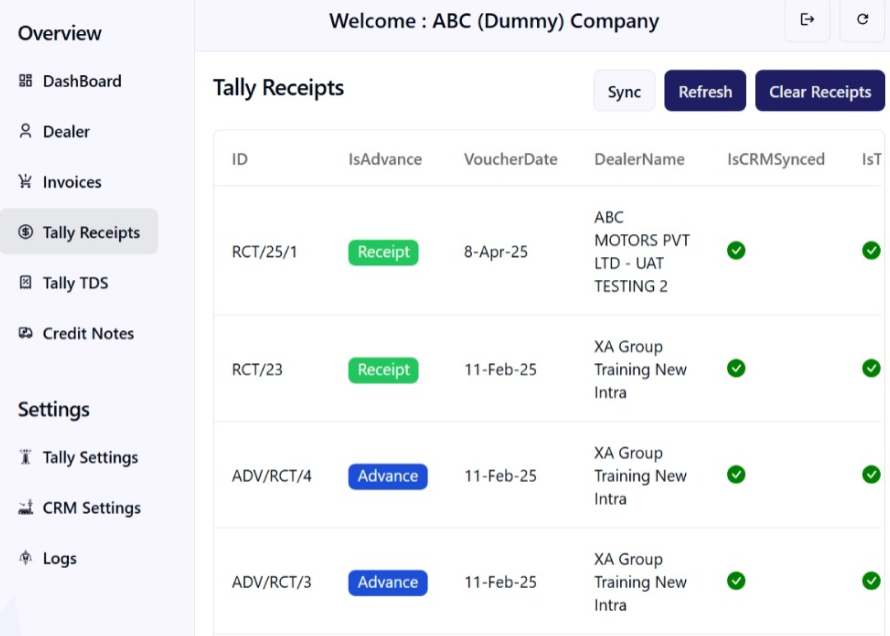

3. Advance Receipt Workflow

• In Tally:

  • Receipt Voucher → Select Bank/Cash → Choose Dealer Ledger → Mark as Advance → Save.

• Connector Flow:

  • tally.service.js → fetchReceipts()

  • Transforms into CRM-compatible JSON.

  • crm.service.js → createAdvanceReceipt()

• Default Status: Unclaimed in CRM.

• Adjustment: Tagged against bills in Tally → Auto-updated in CRM Tally Payment Module.

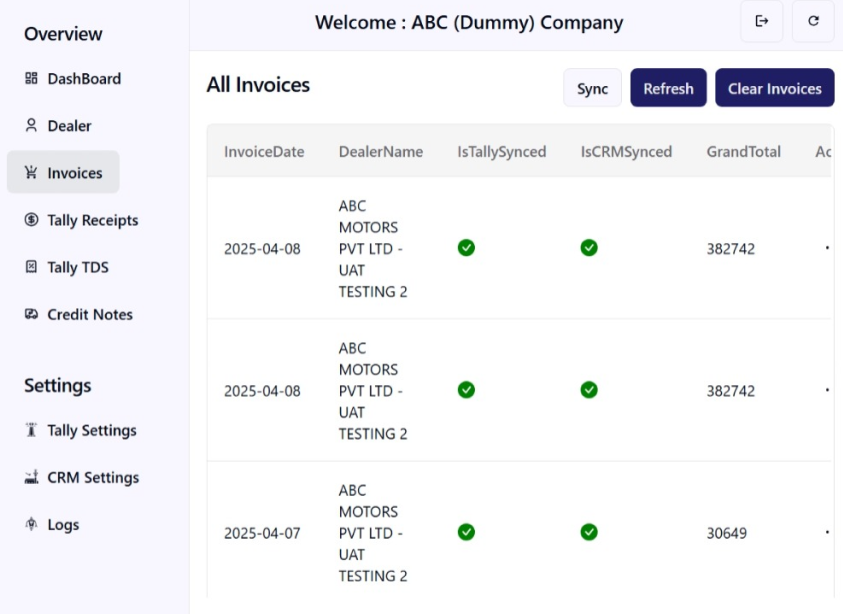

4. Invoice Workflow

• Triggered: First day of every month via scheduler.

• Flow:

  1. Estimate Summary → Invoice Module (CRM).

  2. Stage: Pending → Approval Required.

  3. On Approval → Auto-Sync to Tally as Sales Voucher.

  4. Tally returns Invoice Number → Updates CRM.

• Tax Rules:

  • Intra-State: CGST + SGST

  • Inter-State: IGST

• Connector Buttons:

  • Send Both Reports to Dealer → Invoice + Outstanding

  • Send Invoice Only → Dealer receives invoice

  • Preview Outstanding → Review before sending

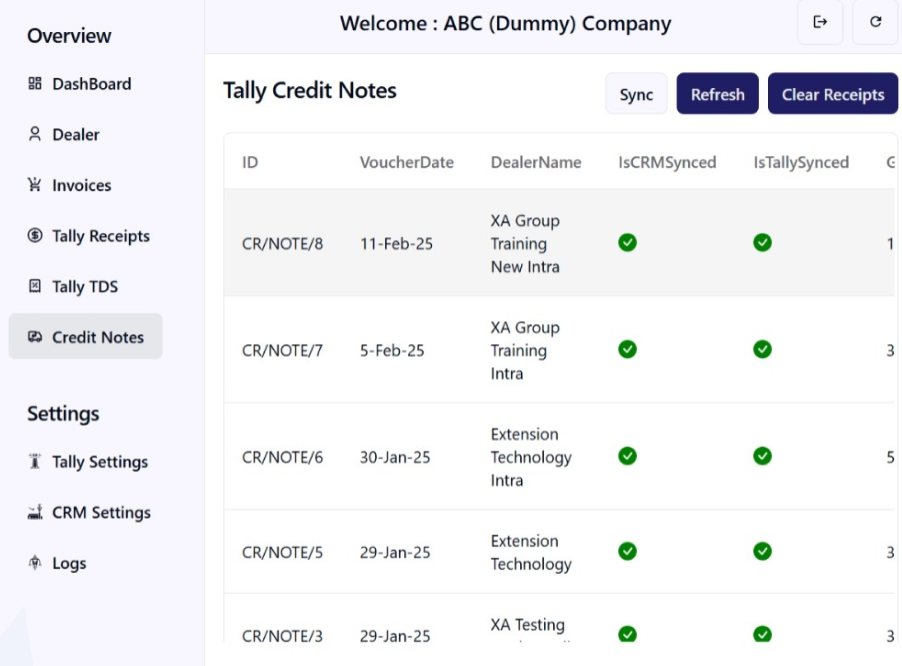

5. Credit Notes

• Created in Tally (Voucher → Credit Note).

• Connector syncs back to CRM Credit Note Module.

• Fields mapped: Dealer, Reason, Credit Amount, Bill Allocation, Narration.

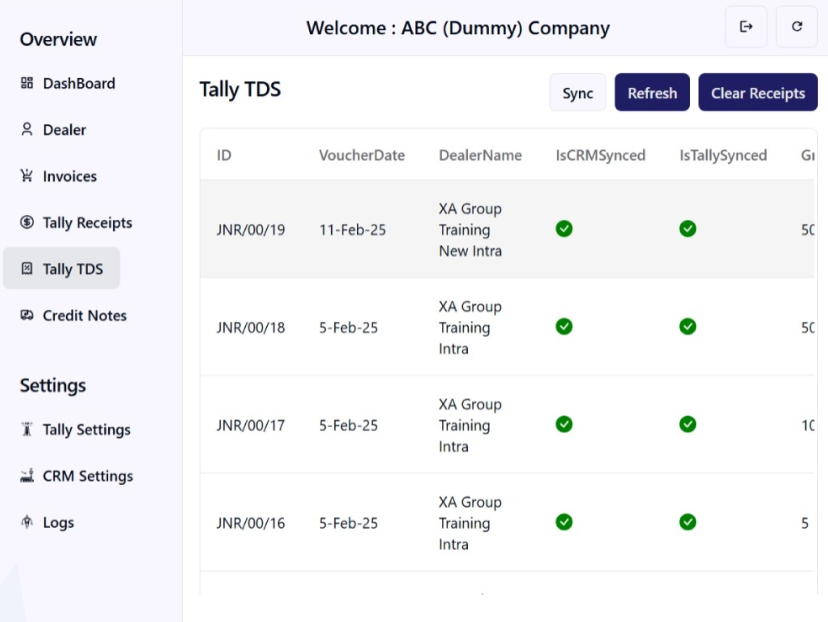

6. TDS Entries

• Created in Tally (Voucher → Journal → TDS on Sale).

• Synced into CRM TDS Module.

• Attachments (certificates) can be uploaded in CRM and linked to TDS entry.

7. Outstanding Calculation

Formula:

Outstanding = (Tally Invoice – Credit Note) – (TDS + Received)

• Received = Tally Payments

• Always displayed in Dealer Module → Related Lists.

Connector Services

CRM Service (crm.service.js)

• Dealer management (createDealer, updateDealer)

• Invoice sync (syncInvoice, updateStatus)

• Advance receipts push

• Validation against CRM schema

Tally Service (tally.service.js)

• Verify Tally connection

• XML generation (via tallyXML.js)

• Create/update ledgers

• Sync invoices & receipts

• Fetch outstanding balances

ERP Service (erp.service.js)

• Supplier sync

• Stock synchronization

• Account-level management

Tally XML (tallyXML.js)

• Template library for Tally requests:

  • createLedgerXML(dealer)

  • createInvoiceXML(invoice)

  • createStockItemXML(product)

  • fetchOutstandingXML()

Error Handling

• UI Level: Error boundaries (ErrorPage.jsx) + Toast notifications.

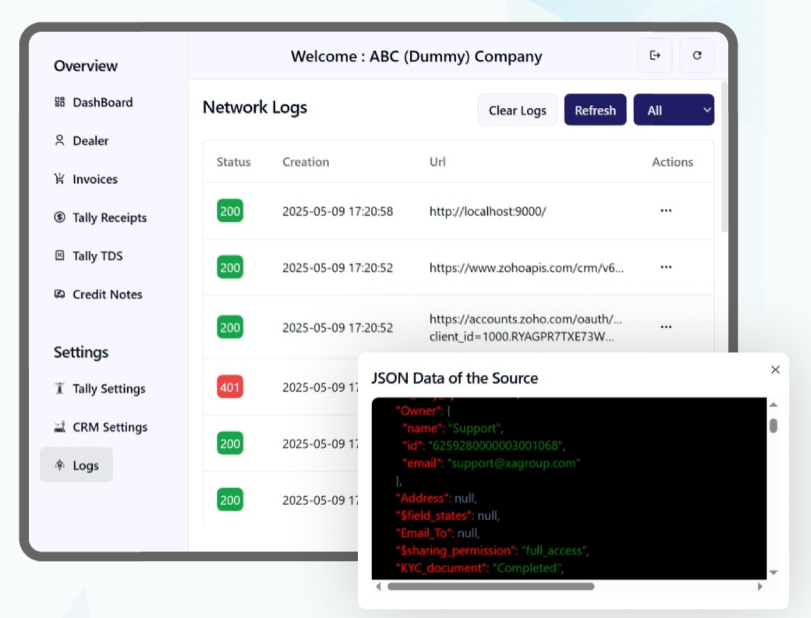

• Logs: /components/screens/app/Logs.jsx

•


  • Filters: Success, Error

  • Includes Sync Timestamp + Source

• Recovery:

  • Force Sync → manually retries failed entries.

  • Clear Receipts → resets outdated receipt data.

Deployment Process

1. Install dependencies

   yarn



2. Configure .env file

   • CRM API credentials

   • Tally Port & Company Name

   • ERP API details

3. Run dev server

   yarn tauri dev



4. Build Tauri app for distribution

   yarn run tauri build
